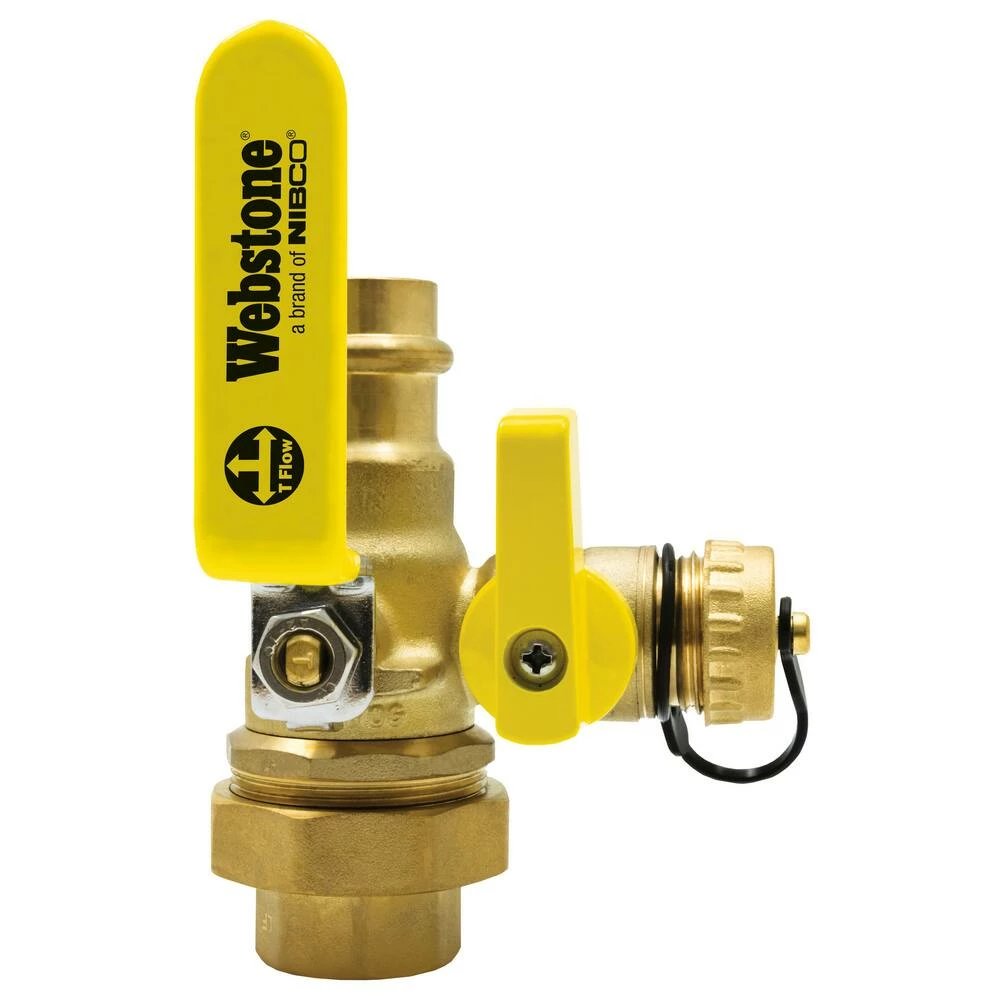

Outlet 🤩 Webstone Company H-x043W Series 1-1/2 in. Forged Brass Full Port Union FIPS x Press 250# Ball Valve ✔️

Original price was: $240.77.Current price is: $91.99.

SKU: 7340635 Category: Ball Valves Tag: Brass

Free 1 year warranty period
Friendly, efficient service, always online.
Safe and Secure Payments, Always
Satisfaction Guaranteed

Eliminates Assembly Needed to Isolate and Drain Any Portion of a Piped System

Reversible Handle for Added Versatility

Exclusive Adjustable Flow Path Allow for Draining From Either Side of the Ball

UnionConnectionAllowsforAnySystemAppliancetoBeEasilyDisconnectedforReplacement

Saves 45 Minutes

Replaces 6 Components

Eliminates 5 Leak Paths

ANSI Specifications	ANSI B1.20.1,ANSI 14,ANSI 61,ANSI 372
Valve Body Style	1 piece
Pressure Class	250#
Recommended Valve Application	Commercial, Glycol, Oil, Residential, Water
Size	1-1/2 in
Temperature Range	Up to 250 Deg F
Temperature Rating	250
UL Listed	No
Valve Body Material	Forged Brass
Valve Bonnet Type	Union
NSF Specifications	NSF 14, NSF 372, NSF 61
Valve Material	Brass
Valve Operator	Reversible Handle
Valve Port Opening	Full Port
Valve Seat Material	PTFE
Valve Size	1-1/2 in
Valve Stem	Blowout-proof
Valve Type	Ball Valve
Weight	4.88
Origin	Global
NSF Certified	Yes
Clean Bagged	No
Handle Included	Yes
Collection	H-x043W Series
Color Finish	Brass
Depth	8-3/5 in
End Connection 1	Union FIPT
End Connection 2	Press
End Connections	Union FIPS x Press
FM Approved	No
Handle Length in	3-3/10 in
Maximum Temperature	250
Handle Material	Steel
Handle Type	Lever
Height	4-1/2 in
High Pressure	250
Length	8-3/5 in
Material	Brass
Material Type	DZR
Maximum Pressure	250 psi
Width	5-1/5 in
