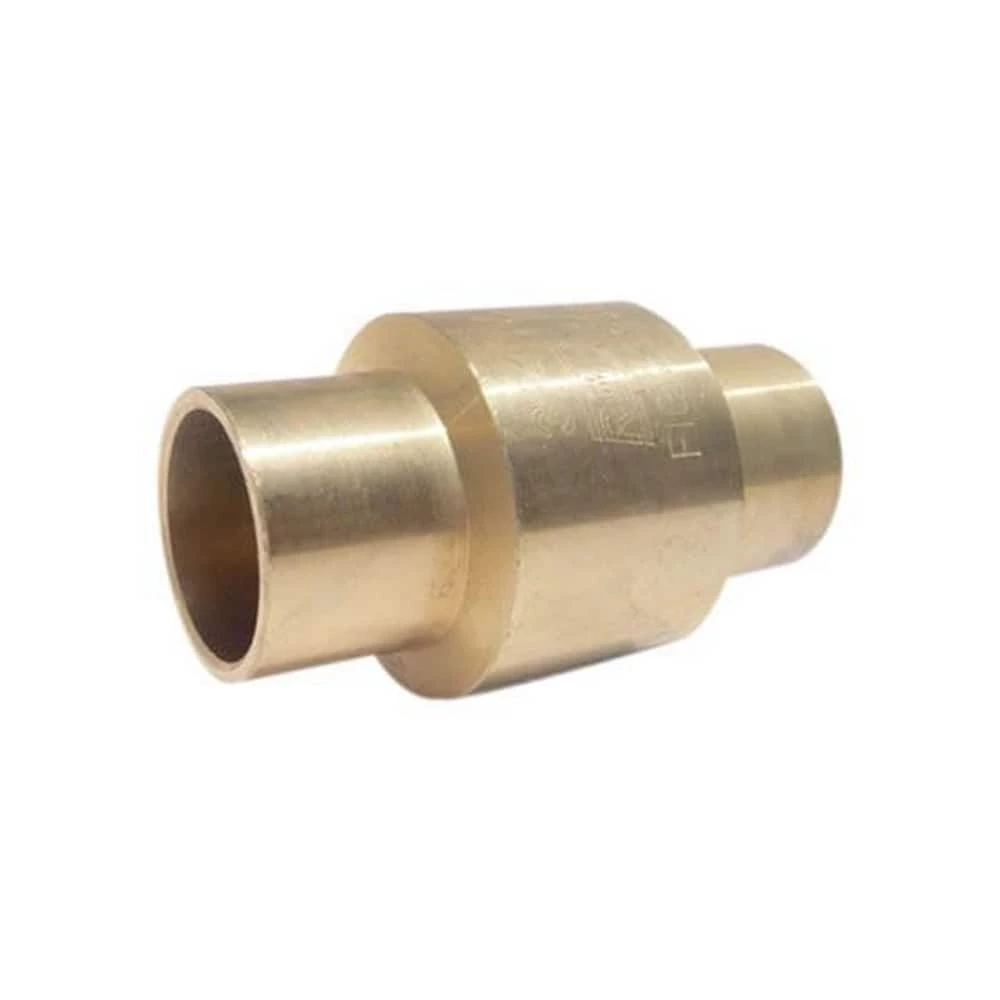

New 👍 Red-White Valve Figure 233AB 1 in. Brass Solder Check Valve 👍

Name: New 👍 Red-White Valve Figure 233AB 1 in. Brass Solder Check Valve 👍
SKU: 4155166
Availability: InStock

Original price was: $56.14.Current price is: $39.30.

SKU: 4155166 Category: Check Valves Tag: Brass

FPMSoft Seat

Low Lead Brass Disc

Spring Loaded (SS304 spring)

Horizontal or Vertical

Low Noise Operation

AB1953, NSF/ANSI 61 & 372

ANSI Specifications	ANSI 372, ANSI 61
Material	Brass
Valve Type	Check Valve
Valve Size	1 in
Valve Seat Material	FKM
Valve Disc Material	Brass
Valve Body Style	Inline
UL Listed	No
Recommended Valve Application	Gas, Oil, Water
Pressure Class	200#
NSF Specifications	NSF 372, NSF 61
NSF Certified	Yes
Minimum Temperature	15
Maximum Temperature	200
Length	1-77/100 in
ASME Specifications	ASME B16.22
Lead Law Compliant	Yes
Installation Type	Horizontal, Vertical
IAPMO Listed	No
High Pressure	200
Height	3-3/20 in
FM Approved	No
End Connections	Solder
End Connection 2	Solder
End Connection 1	Solder
Collection	Figure 233AB
Clean Bagged	No
ASTM Specifications	ASTM B-927 C27450
Weight	0.66
