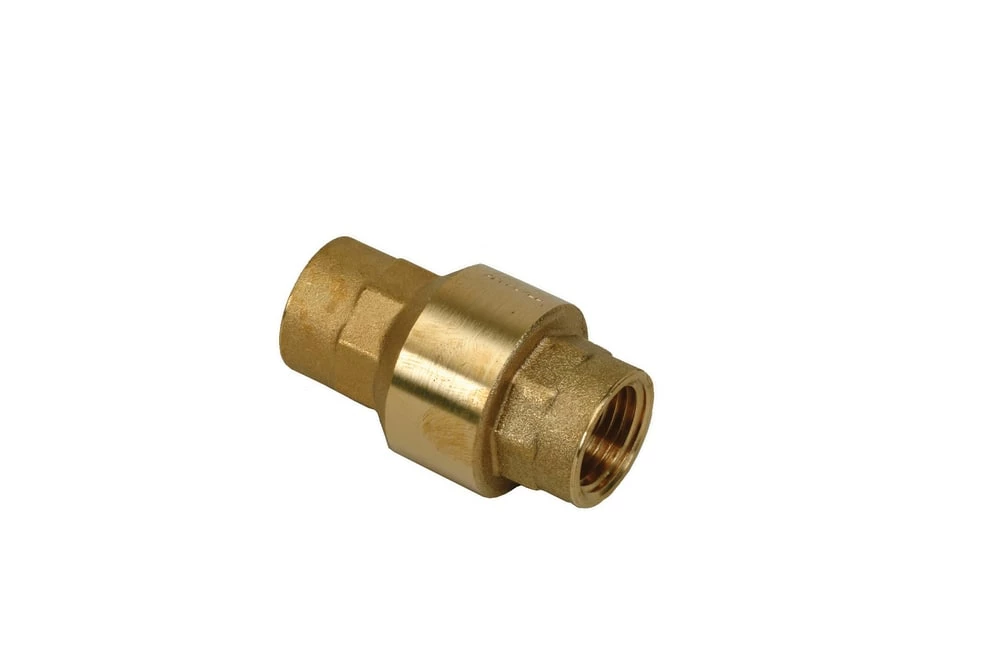

Budget ✨ PROFLO® PFSCV Series 1 in. Brass Female Threaded Spring Check Valve 👏

Name: Budget ✨ PROFLO® PFSCV Series 1 in. Brass Female Threaded Spring Check Valve 👏
SKU: 303534
Availability: InStock

Original price was: $17.58.Current price is: $12.31.

SKU: 303534 Category: Check Valves Tag: Brass

Soft seat for bubble tight shutoff, spring loaded for fast seating action

Low cracking pressure 1/2 PSI

Flow profile designed to minimize head loss easy design

High technology materials to ensure best resistance in any condition

Patented disc guide

Stainless steel springs with neoprene o-ring seal

Can be installed in all positions including the vertical down direction

Not for use at or below ground level

ANSI Specifications	ANSI 61
NSF Certified	Yes
WaterSense Labeled	No
Valve Type	Spring Check Valve
Valve Size	1 in
Valve Seat Material	NBR
Valve Disc Material	Brass
Valve Body Style	Spring
Recommended Valve Application	Oil, Water
Pressure Class	400#
NSF Specifications	NSF 61
Minimum Temperature	10
Application	Residential
Maximum Temperature	210
Material	Brass
Lead Law Compliance Level	Not Approved for Potable Water Applications
Installation Type	Horizontal, Vertical
High Pressure	400
Height	1-15/16 in
End Connections	Female Threaded
End Connection 2	Female Threaded
End Connection 1	Female Threaded
Collection	PFSCV Series
Width	2-3/4 in
