Outlet 🎉 FNW® Figure X415 1 in. Brass Full Port NPT 600# Ball Valve 👏

Name: Outlet 🎉 FNW® Figure X415 1 in. Brass Full Port NPT 600# Ball Valve 👏
SKU: 4481009
Availability: InStock

Original price was: $20.62.Current price is: $14.43.

SKU: 4481009 Category: Ball Valves Tag: Brass

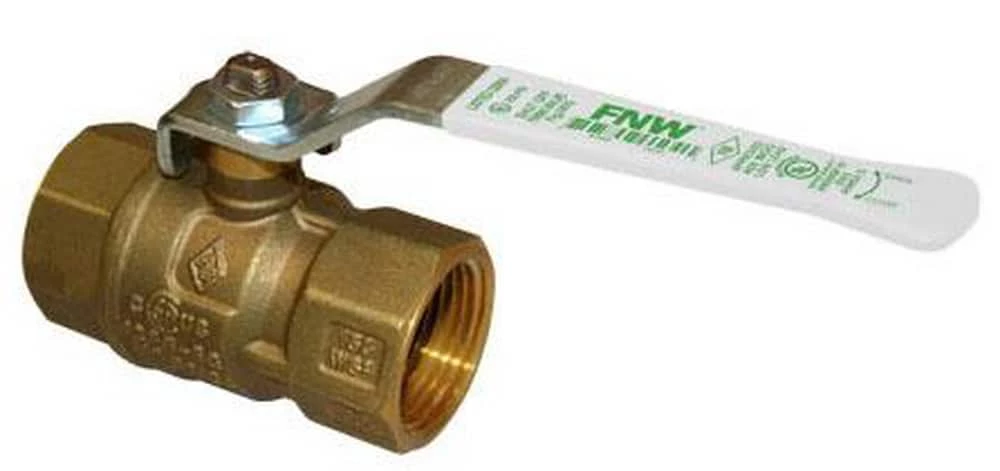

1 in. brass ball valve

End Connections: Threaded

Valve Length: 3.01 in.

Maximum Temperature: 149 degrees (F)

Valve Pressure Class: 600#

Recommended Application: Gas

NSF 372, NSF 61G

ANSI B1.20.1

2 Piece valve body with full port opening

ANSI Specifications	ANSI 372, ANSI 61, ANSI B1.20.1, ANSI Z21.15
Material	Brass
WaterSense Labeled	No
Valve Type	Ball Valve
Valve Stem	Blowout-proof
Valve Size	1 in
Valve Seat Material	PTFE
Valve Port Opening	Full Port
Valve Operator	Lever Handle
Valve Body Style	2 piece
UL Listed	UL 125
Temperature Range	-40 to 149 Deg F
Recommended Valve Application	Gas, Oil, Water
Pressure Class	600#
NSF Specifications	NSF 372, NSF 61, NSF 61-G
NSF Certified	Yes
MSS Specifications	MSS SP-110
ASME Specifications	ASME B16.33, ASME B16.44
MA Approved	Yes
Length	3-1/100 in
Lead Law Compliant	Yes
ISO Specifications	ISO 9002
IAPMO Listed	No
High Pressure	150
Handle Material	Steel
FM Approved	Yes
End Connections	NPT
End Connection 2	NPT
End Connection 1	NPT
Collection	Figure X415
Clean Bagged	No
CSA Certified	CSA 9.1
Weight	1
