Buy 👏 FNW® Figure X415 1-1/4 in. Full Port 600 WOG Non-Shock Brass Ball Valve with Threaded NPT Ends 🛒

Original price was: $32.08.Current price is: $22.46.

SKU: 4481010 Category: Ball Valves Tag: Brass

Free 1 year warranty period
Friendly, efficient service, always online.
Safe and Secure Payments, Always
Satisfaction Guaranteed

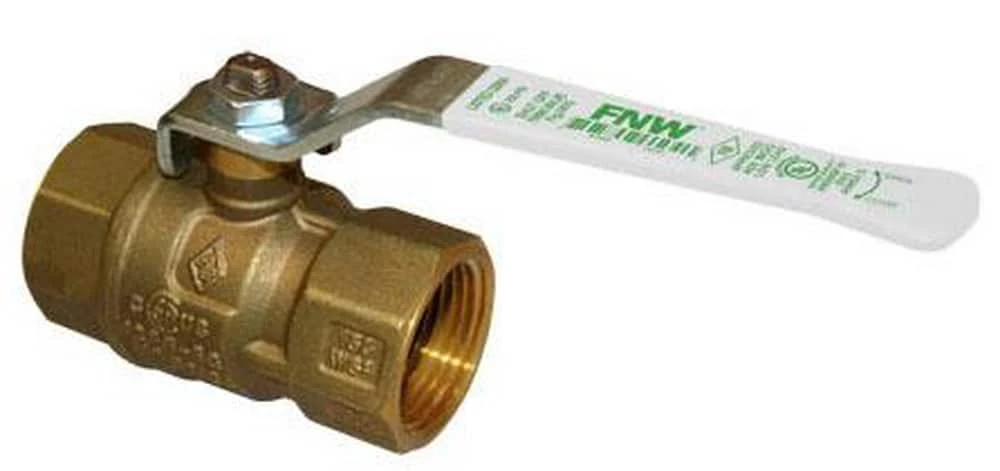

1-1/4 in. brass ball valve

End Connections: Threaded

Valve Length: 3.37 in.

Maximum Temperature: 149 degrees (F)

Valve Pressure Class: 600#

Recommended Application: Gas

NSF 372, NSF 61G

ANSI B1.20.1

2 Piece valve body with full port opening

ANSI Specifications	ANSI 372, ANSI 61, ANSI B1.20.1
Valve Body Style	2 piece
NSF Certified	Yes
NSF Specifications	NSF 372, NSF 61, NSF 61G
Pressure Class	600#
Recommended Valve Application	Gas
UL Listed	UL 125
Valve Body Material	Forged Brass
Valve Operator	Lever Handle
Maximum Temperature	149
Valve Port Opening	Full Port
Valve Seat Material	PTFE
Valve Size	1-1/4 in
Valve Stem	Blowout-proof
Valve Type	Ball Valve
WaterSense Labeled	No
Minimum Temperature	-40
Material	Brass
ASME Specifications	ASME B16.33, ASME B16.38, ASME B16.44
FM Approved	Yes
CSA Certified	CSA 9.1
Clean Bagged	No
Collection	Figure X415
End Connection 1	FNPT
End Connection 2	FNPT
End Connections	FNPT
Handle Material	Steel
MSS Specifications	MSS SP-110
High Pressure	400, 600
IAPMO Listed	No
ISO Specifications	ISO 9002
Lead Law Compliant	Yes
Length	3-3/8 in
MA Approved	Yes
Weight	1.63
