Budget 😀 FNW® Figure X410C 3/4 in. Brass Full Port NPT 600# Ball Valve 🎁

Name: Budget 😀 FNW® Figure X410C 3/4 in. Brass Full Port NPT 600# Ball Valve 🎁
SKU: 4834888
Availability: InStock

Original price was: $13.88.Current price is: $9.72.

SKU: 4834888 Category: Ball Valves Tag: Brass

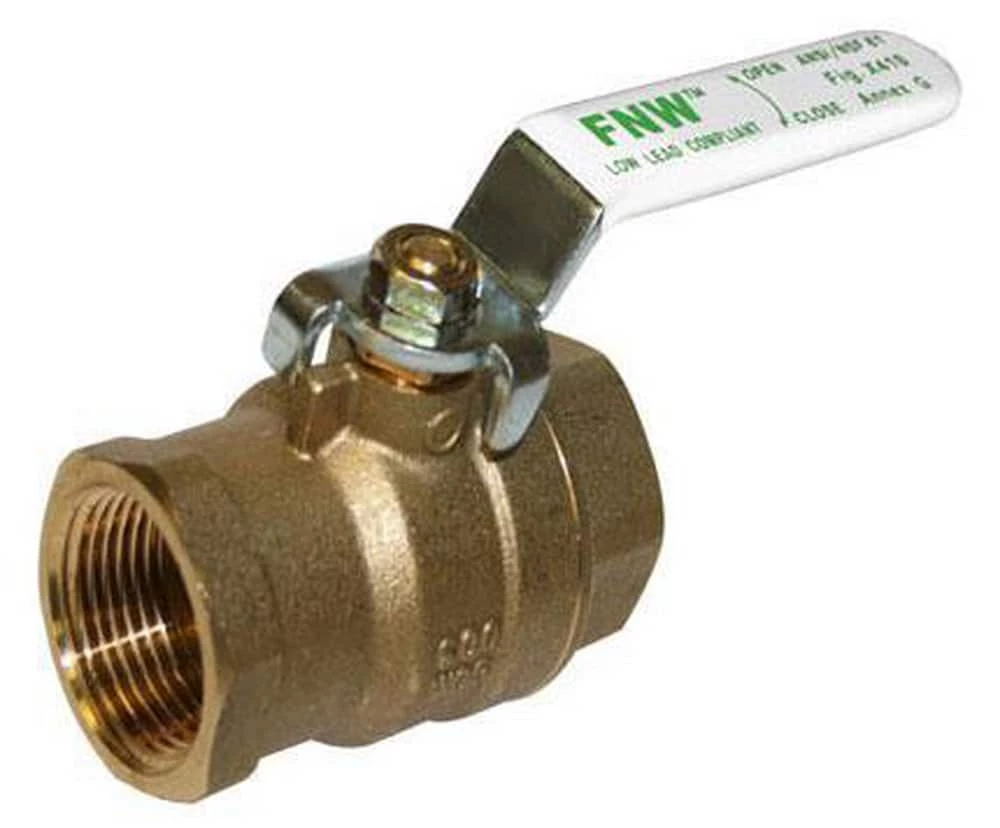

3/4 in. brass ball valve

End Connections: Threaded

Valve Length: 2.48 in.

Maximum Temperature: 150 degrees (F)

Valve Pressure Class: 600#

Recommended Application: Water, oil, gas

NSF 372, NSF 61G

ANSI B1.20.1

2 Piece valve body with full port opening

ANSI Specifications	ANSI 372, ANSI 61, ANSI 842, ANSI B1.20.1, ANSI Z21.15
Material Type	C46400
WaterSense Labeled	No
Valve Type	Ball Valve
Valve Stem	Blowout-proof
Valve Size	3/4 in
Valve Seat Material	PTFE
Valve Port Opening	Full Port
Valve Operator	Lever Handle
Valve Body Style	2 piece
UL Listed	UL 125/UL 842
Temperature Range	-20 to 125 Deg F
Recommended Valve Application	Gas, Oil, Water
Pressure Class	600#
NSF Specifications	NSF 372, NSF 61 Annex G
NSF Certified	Yes
Material	Brass
ASME Specifications	ASME B16.33, ASME B16.44
MSS Specifications	MSS SP-110
MA Approved	Yes
Length	3-19/25 in
Lead Law Compliant	Yes
IAPMO Listed	No
Handle Material	Steel
FM Approved	No
End Connections	NPT
End Connection 2	NPT
End Connection 1	NPT
Collection	Figure X410C
Clean Bagged	No
CSA Certified	CSA 9.1
ASTM Specifications	ASTM A-283, ASTM B-16 C36000
Weight	0.74
